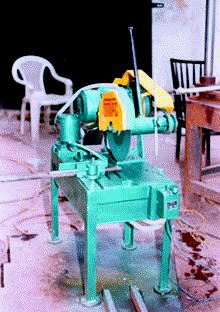

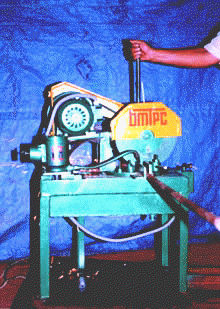

Model : AS - 12
|
USE
For cutting of bars and pipes to suit the requirement.
|
|
Production capacity :
Energy Source :
|
1mm to 25mm bar. Steel pipe up to 80 mm dia.
8mm cut – 30 pcs/min
12mm cut – 25 pcs/min
25mm cut – 2 pcs/min
1" Cut – 10 pcs/min
2" Cut – 5 pcs/min
3" Cut – 1 pc /min
(depending upon feeding speed)
Electrical, 3 phase, 440 volts
|
|
Size of machine :
Weight of Machine :
Manpower :
Energy transmission :
Energy Source :
Drives :
Cutting tool :
Water pump :
|
910 x 580 x 1000 mm
90 kgs approx.
Skilled - 1, Unskilled - 1
Hand stick operated cutting with auto coolant circulation.
2.5 HP
2 HP 4 pole Induction motor , 1500 rpm to provide pulley ratio 1:3.5 for final rpm of cutter 4500
Parting wheel of 8" to 12 ". 2 to 4 mm thick, 1" holding hole
1/4 HP, 4 pole, 4 LPM
|
|
|
