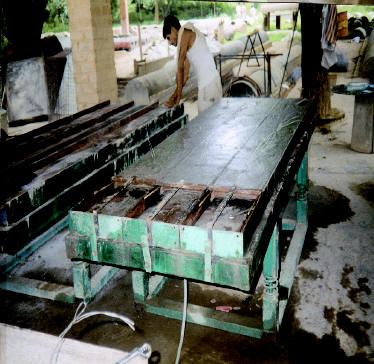

Model FB- 1
|
USE
For production of C-section beams (Rafter) of all sizes up to a span of 3600 mm
|
|
Production Capacity
(per day in 8 hr shift)
Energy Source
|
3-4 C-beams depending upon the size
Electric, 3 phase, 440 volts
|
|
Size of machine
Weight of Machine
Size of C-beam
Cross section size
No. of C-beam per cycle
Type
Manpower
Energy Transmission
Compaction by
Power requirement
Compressive strength
|
750 x 1200 x 3800 mm
650 kgs
150 x 100 x 3650 mm or
300 x 150 x 3650 mm
25 mm thickness
150 x 100 mm 4 Nos.
300 x 150 mm 3 Nos
Portable
Skilled – 1, Unskilled – 3
High amplitude vibrations
Vibration technique
2 HP
250 kg/cm2
|
|
Others
Can be designed/fabricated for different sizes of final products.
Production capacity can be increased by replacing the mould
|
|
|
