ZONE V



MAXIMUM
HEIGHT

MORTAR
MIX

BANDS

VERTICAL
REINFOR- CEMENT

DIAMETER OF
VERTICAL
REINFOR- CEMEN
T

MORTAR MIX FOR BAND I VERTICAL
REINFOR- CEMENT

BRACING OF
PITCHED
ROOF

Building with Strip Foundation on Rock/ Hard Soil/Medium soil

Four Storey (Less than 15 m)

1:4 Cement-
Sand or
1:1:6  Cement-
Lime-Sand

1. Lintel Band
2. Roof Band/ Gable Band

3. Plinth Band

I. At Joints and
Corners
2. At Jambs of
Openings

Single Bar of 20mm (TMT/TOR)
or
25mm (MS)

1:3 Cement-Sand
or
M 15 Concrete

Bracing at Tie Level

Building with Strip Foundation on Soft soil

Four Storey (Less than 15 m)

1:4 Cement-
Sand or
1:1:6  Cement-
Lime-Sand

1. Lintel Band
2. Roof Band/ Gable
Band

3. Plinth Band

1. At Joints and corners
2. At Jambs of Openings

Single Bar of 20mm (TMT/TOR)
or
25mm (MS)

1:3 Cement-Sand
or
M 15 Concrete

Bracing at Tie Level

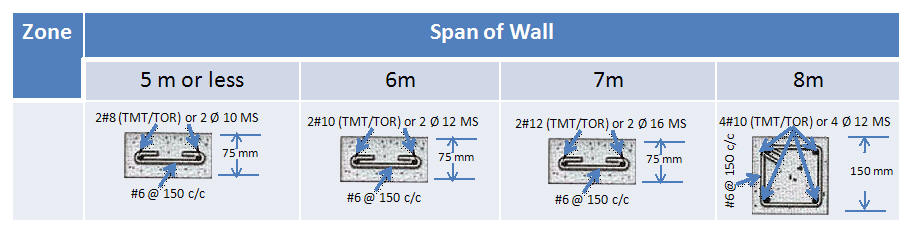

Details of Horizontal Bands in Masonry Building

(Buildings with Strip foundation on Rock/Hard Soil/Medium Soil)

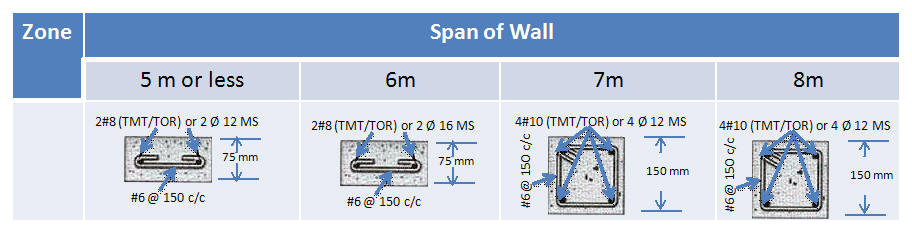

Details of Horizontal Bands in Masonry Building

(Buildings with Strip foundation on Soft Soil)





Z factor : 0.36

DISTRICTS LYING IN EARTHQUAKE HAZARD ZONE V
(based on the Vulnerability Atlas of India – 2nd Edition, BMTPC)

ANDAMAN & NICOBAR ISLANDS

Andamans, Nicobars (2)

ANDHRA PRADESH



ARUNACHAL PRADESH

Lower-Subansiri, Tawang, Tirap, Upper-Siang, Upper-Subansiri, Changlang, Dibang-Valley, East-Kameng, East-Siang, Lohit, Papum-Pare, West-Kameng, West-Siang (13)

ASSAM

Dhubri, Cachar, Hailakandi, Karimganj, North-Cachar-Hills, Barpeta, Bongaigaon, Darrang, Upper-Dhemaji, Dibrugarh, Goalpara, Golaghat, Jorhat, Kamrup, Karbi-Anglong, Kokrajhar, Lakhimpur, Marigaon, Nagaon, Nalbari, Sibsagar, Sonitpur, Tinsukia (23)

BIHAR



Araria, Darbhanga, Kishanganj, Madhepura, Madhubani, Purnia, Saharsa, Sitamarhi, Supaul, Muzaffarpur (10)

CHANDIGARH



CHATTISGARH



DADRA AND NAGAR HAVELI



DAMAN & DIU



DELHI



GOA



GUJARAT



Kachchh (1)

HARYANA



HIMACHAL PRADESH

Solan, Una, Bilaspur, Chamba, Hamirpur, Kangra, Kullu, Mandi (8)

JAMMU & KASHMIR

Anantanag, Baramula,  Pulwama, Srinagar;

Badgam, Kathua, Kupwara, (7)

JHARKHAND



KARNATAKA



KERALA



LAKSHADWEEP



MADHYA PRADESH



MAHARASHTRA



MANIPUR

Bishnupur, Chandel, Imphal-East, Thoubal, Ukhrul, Churachandpur, Imphal-West,

Tamenglong, Senapati (9)

MEGHALAYA

Jaintia-Hills, East-Garo-Hills, East-Khasi-Hills, Ri- Bhoi, South-Garo-Hills,

West-Garo-Hills, West-Khasi-Hills (7)

MIZORAM

Aizawl, Champai, Kolasib, Lawngtlai, Lunglei, Mamit, Saiha, Serchhip (8)

NAGALAND

Phek, Zunheboto, Dimapur, Kohima, Mokokchung, Mon, Tuensang, Wokha (8)

ORISSA



PONDICHERRY



PUNJAB



RAJASTHAN



SIKKIM



TAMILNADU



TRIPURA

Dhalai, North-Tripura, South-Tripura, West-Tripura (4)

UTTAR PRADESH



UTTARANCHAL

Almora, Bageshwar, Chamoli,  Pithoragarh, Rudraprayag, Tehri-Garhwal Uttarkashi, Garhwal (8)

WEST BENGAL

Jalpaiguri, Koch-Bihar (2)
