ZONE IV



MAXIMUM
HEIGHT

MORTAR
MIX

BANDS

VERTICAL
REINFOR- CEMENT

DIAMETER OF
VERTICAL
REINFOR- CEMEN
T

MORTAR MIX FOR BAND I VERTICAL
REINFOR- CEMENT

BRACING OF
PITCHED
ROOF

Building with Strip Foundation on Rock/ Hard Soil/Medium soil

Four Storey (Less than 15 m)

1:6 Cement-
Sand or
1:2:9  Cement-
Lime-Sand

1. Lintel Band
2. Roof Band/ Gable Band

3. Plinth Band

At Joints and corners

Single Bar of
12 mm (TMT/TOR) or
16mm (MS)

1:3 Cement-Sand
or
M 15 Concrete

Bracing at Tie Level

Building with Strip Foundation on Soft soil

Four Storey (Less than 15 m)

1:6 Cement-
Sand or
1:2:9  Cement-
Lime-Sand

1. Lintel Band
2. Roof Band/ Gable
Band

3. Plinth Band

1. At Joints and corners
2. At Jambs of Openings

Single Bar of 12mm (TMT/TOR) or 16mm (MS)

1:3 Cement-Sand
or
M 15 Concrete

Bracing at Tie Level

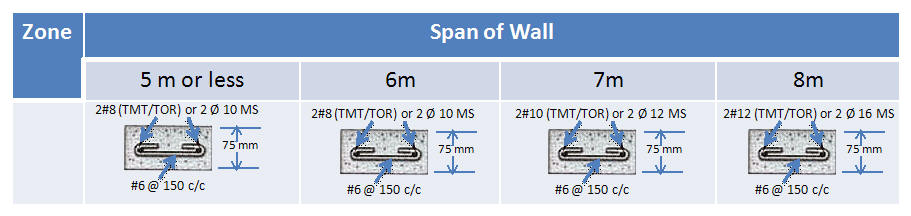

Details of Horizontal Bands in Masonry Building

(Buildings with Strip foundation on Rock/Hard Soil/Medium Soil)

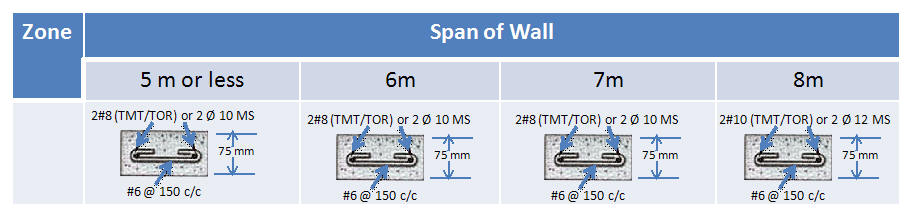

Details of Horizontal Bands in Masonry Building

(Buildings with Strip foundation on Soft Soil)



Z factor : 0.24

DISTRICTS LYING IN EARTHQUAKE HAZARD ZONE IV
(based on the Vulnerability Atlas of India – 2nd Edition, BMTPC)

ANDAMAN & NICOBAR ISLANDS



ANDHRA PRADESH



ARUNACHAL PRADESH



ASSAM



BIHAR



Banka, Begusarai, Bhagalpur, Bhojpur, Gopalganj, Jehanabad, Katihar, Khagaria, Lakhisarai, Munger,  Nalanda, Purba-Champaran, Pashchim-Champaran, Patna, Samastipur, Saran, Siwan, Vaishali, Nawada, Sheikhpura, Jamui; Sheohar (22)

CHANDIGARH

Chandigarh (1)

CHATTISGARH



DADRA AND NAGAR HAVELI



DAMAN & DIU



DELHI

East, South, Central, New Delhi, North, North-East, North-West, South-West, West (9)

GOA



GUJARAT



Banas-Kantha, Jamnagar, Patan, Rajkot (4)



HARYANA

Ambala, Faridabad, Gurgaon, Panchkula,  Rewari, Yamunanagar Bhiwani, Mahendragarh Jhajjar, Karnal, Kurukshetra, Panipat, Rohtak, Sonipat

(14)

HIMACHAL PRADESH

Sirmaur, Kinnaur, Lahul-Spiti, Shimla, (4)

JAMMU & KASHMIR

Doda, Jammu, Punch, Rajauri, Udhampur, Leh-(Ladakh), Kargil (7)

JHARKHAND

Godda, Sahibganj (2)

KARNATAKA



KERALA



LAKSHADWEEP



MADHYA PRADESH



MAHARASHTRA

Kolhapur, Pune, Raigarh, Ratnagiri, Sangli, Satara (6)

MANIPUR



MEGHALAYA



MIZORAM



NAGALAND



ORISSA



PONDICHERRY



PUNJAB

Amritsar, Fatehgarh-Sahib, Gurdaspur, Hoshiarpur, Jalandhar, Kapurthala, Ludhiana, Nawanshahr, Patiala, Rupnagar Moga, (11)

RAJASTHAN

Alwar, Barmer, Bharatpur,  Jalor, (4)

SIKKIM

East, South, North, West (4)

TAMILNADU



TRIPURA



UTTAR PRADESH

Aligarh, Baghpat, Bahraich, Ballia, Balrampur, Bareilly, Basti, Bijnor, Budaun, Bulandshahar, Deoria, Etah, Gautam-Buddha- Nagar, Ghaziabad, Gonda, Gorakhpur, Hathras, Jyotiba Phule Nagar, Kheri, Kushinagar, Maharajganj, Mathura, Meerut, Moradabad, Muzaffarnagar,

Pilibhit, Rampur, Saharanpur, Sant Kabir Nagar, Shahjahanpur, Shravasti, Siddharthnagar (32)

UTTARANCHAL

Nainital, Udhamsingh-Nagar, Hardwar, Dehradun, Champawat (5)

WEST BENGAL

Uttar-Dinajpur, North-24-Parganas, South-24- Parganas, Darjiling, Dakshin-Dinajpur, Maldah(6)

Total

131
